AirWorks 2D Only Bundle

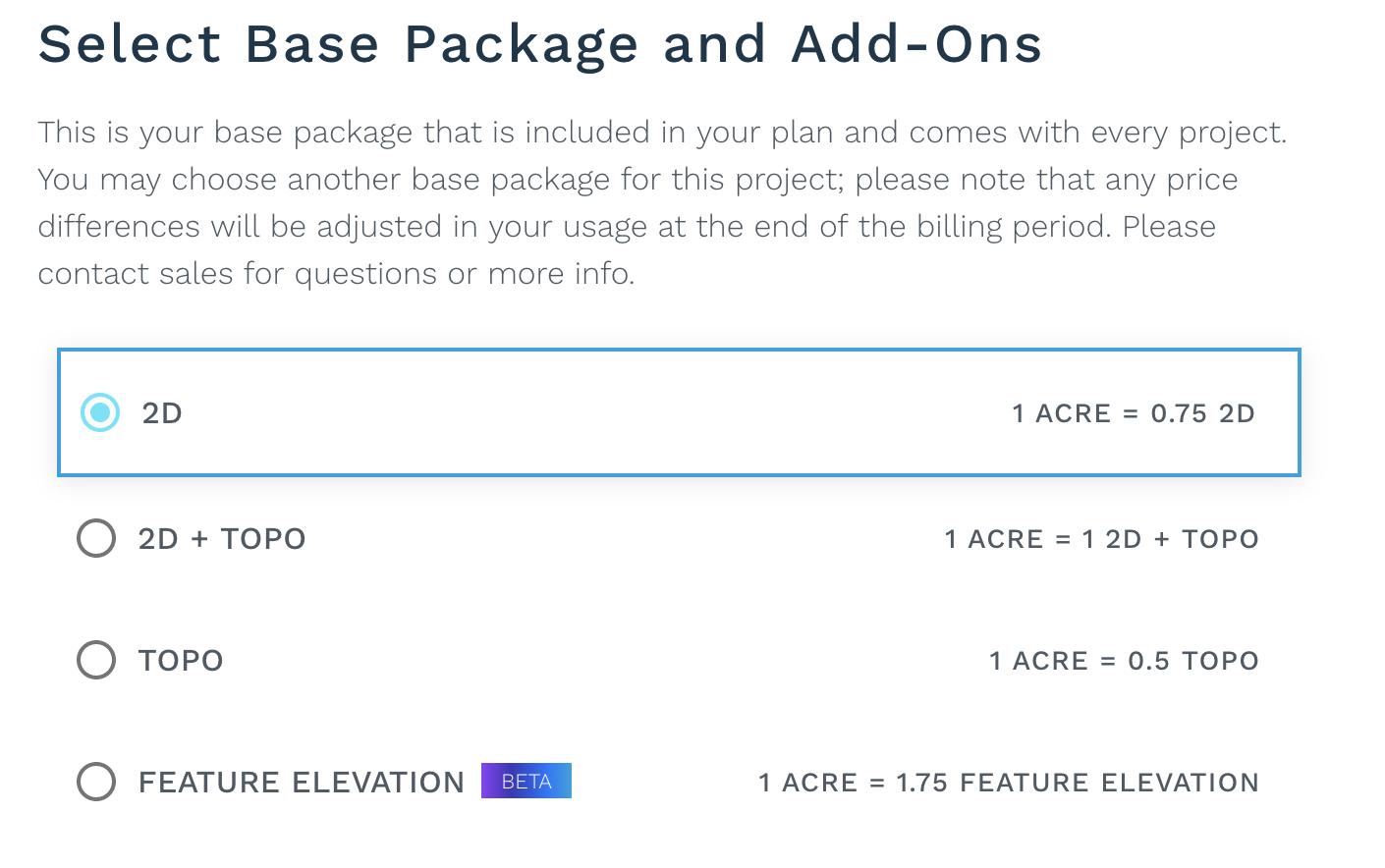

2D + Topo Project Sizing:

1 Acre of your project equals 0.75 Credits if the 2D Only Bundle is selected.

Input files needed for 2D Only Bundle:

• TIF

Base Layers:

These layers are included with your selection of the 2D Only Bundle:

• Roads

• Pavement Markings

• Sidewalks

• Water

• Concrete Pad

• Curbs

• Buildings

• Vegetation

• Manholes

• Catch Basins

Base Deliverables:

The 2D Only Bundle includes the following file format(s):

• CAD Drawing (.dxf)

Add-on Deliverables:

These deliverables and other layers listed below can be added to your order at the price per acre listed next to it.

Deliverables

Please select the 2D + TOPO bundle to add Landxml File Format (.xml) at checkout

• Geojson File Format (.geojson)

• Esri File Format (.shp)

• AutoCad File Format (.dwg)

• Bentley File Format (.dgn)

• GeoDatabase File Format (.gdb)

Add-on Layers:

Utilities

• Fire Hydrants

• Utility Poles - Traffic, Telephone, Light

• Overhead Wires

Roads & Sidewalks

• Curbs Split - Berm

• Roads Split - Asphalt, Concrete, Paver, Gravel, Unpaved

• Sidewalks Split - Asphalt, Concrete, Paver, Gravel, Unpaved

• Pavement Markings Split - Line, Poly, Symbol

Vegetation & Landscape

• Vegetation Split - Forest Dripline, Single Tree, Shrub Dripline, Single Shrub

• Golf Course Split - Tee, Green, Fairway, Bunker

Planimetrics

• Railroad (2D)

Walls & Fences

• Walls Split - Concrete Walls, Stone, Brick or other block walls

• Fences Split - Fence Lines, Guard Rails, Railing

Currently Estimated Turnaround Times
